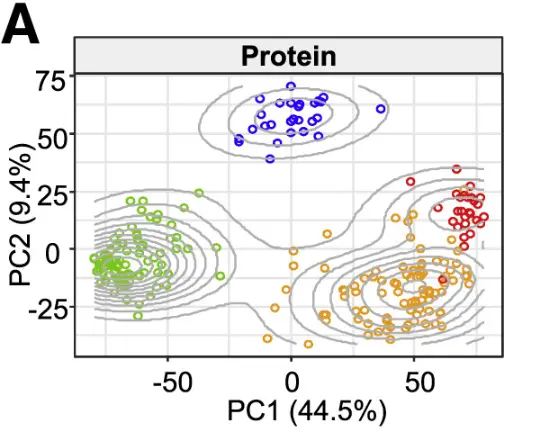

原图 & 文章

Proteogenomics of Non-smoking Lung Cancer in East Asia Delineates Molecular Signatures of Pathogenesis and Progression
Chen, Yi-Ju et al.
Cell, Volume 182, Issue 1, 226 - 244.e17

功能：PCA分析

炫图

代码

代码解释：

# 加载必要的包
devtools::install_github("clauswilke/ggisoband")
library(ggplot2)
library(ggisoband)

# 示例数据：生成一个包含 PCA 坐标和分组标签的数据框
set.seed(123)
# 创建一个数据框，包含 PCA1 和 PCA2 坐标以及分组信息
data <- data.frame(
	PC1 = c(rnorm(100, mean = -50, sd = 15), rnorm(100, mean = 0, sd = 10), rnorm(100, mean = 50, sd = 15)),
	PC2 = c(rnorm(100, mean = 25, sd = 10), rnorm(100, mean = 0, sd = 20), rnorm(100, mean = -25, sd = 10)),
	Protein = factor(rep(c("Green", "Orange", "Red"), each = 100))  # 分组标签
)

# 绘制 PCA 散点图和多个椭圆
ggplot(data, aes(x = PC1, y = PC2, color = Protein)) +
	geom_density_bands(fill ="white" , color = "gray", alpha =0.5, size = 1) +
	scale_color_manual(values=c("#96cf55","#4221f7","#e5a954"))+
	scale_fill_viridis_c(guide = "legend") +
	geom_point(shape = 21, fill = "white",size=2, stroke=1.5) +
	theme(panel.grid = element_line(color = "gray70"),
		  legend.position = "none") +
	labs(x="PC1 (35.0 %)", y ="PC2 (12.9%)")

详细解释：

1. geom_density_bands(fill ="white", color = "gray", alpha =0.5, size = 1):

   • geom_density_bands() 用于绘制 等密度带（也就是椭圆区域）。
   • fill = "white"：填充颜色设置为白色。
   • color = "gray"：边界颜色设置为灰色。
   • alpha = 0.5：设置透明度为 50%。
   • size = 1：设置边界线宽度。

2. theme(panel.grid = element_line(color = "gray70"), legend.position = "none"):

   • 设置网格线的颜色为灰色。
   • 隐藏图例：legend.position = "none"。
